Description

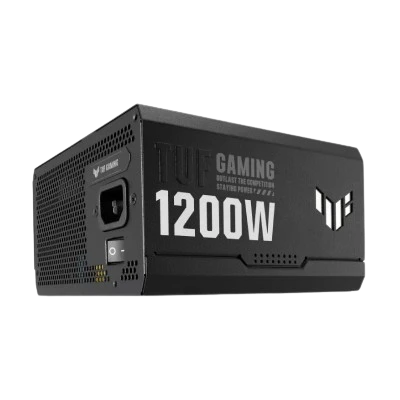

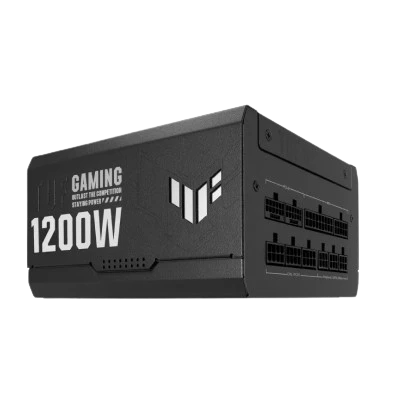

ASUS TUF GAMING 1200W 80 PLUS GOLD ATX 3.0 FULL MODULAR
The TUF Gaming 1200W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

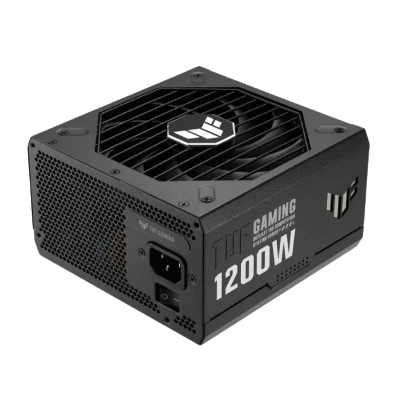

- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular etched cables keep your rig neat and tidy.
- 10-year warranty included.
| Model Number |
ASUS TUF GAMING 1200W 80 PLUS GOLD ATX 3.0 FULL MODULAR |
| Model |
TUF Gaming 1200W Gold |
| Intel Form Factor |
ATX12V |
| PFC Type |
Active PFC |
| ATX Standard |
ATX 3.1 |
| Dimensions |
150 x 150 x 86 mm |
| Efficiency |
80Plus Gold |
| MTBF |
>120,000 hrs @ 40°C |
| Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials |
ROHS |
| AC Input Range |
100-240Vac |
| DC Output Voltage |
#ERROR! |
| Combined Load |
130W 130W 1188W 9.6W 15W |
| Total Output |
1200W |
| Cable Connectors |
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4 |

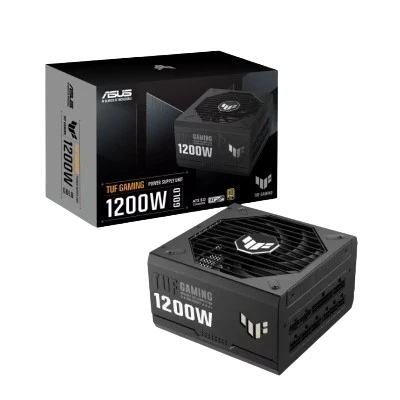

| Package Contents |
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1 |
| Weight |
2.66kg (single PSU) |
| 0dB Technology |
Supported. The fan shuts off entirely when the PSU is under certain load |
