Description
CyberPower UT1500E 1500VA UPS
CyberPower UT1500E
guarantees power protection for computers, POS systems, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design helps UPS achieve ultra-low power consumption to reduce energy costs while lowering UPS operating temperature, which extends its battery lifespan. The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.
| Model Number |
CyberPower UT1500E 1500VA UPS |
| General |
Phase : Single Phase Form Factor : Tower UPS Topology : Line-interactive |
| Input |
Generator Compatibility : Yes Nominal Input Voltage ( Vac ) : 230 ± 10% Input Voltage Range ( Vac ) : 165 ~ 290 Input Frequency ( Hz ): 50 ± 10 60 ± 10 Input Frequency Detection : Auto-sensing Rated Input Current ( A ) : 6.82Input Connector Type: IN/ZAPower Cord Length (ft.) : 4 Power Cord Length (m.) : 1.2 |
| Output |
Capacity (VA) : 1500
Capacity (Watts) : 900
On Battery Waveform : Simulated Sine Wave
On Battery Voltage(s) ( Vac ) : 230 ± 10%
On Battery Frequency ( Hz ) :60 ± 1% 50 ± 1%
Automatic Voltage Regulation (AVR) : Single Boost, Single Buck
Overload Protection : Circuit Breaker

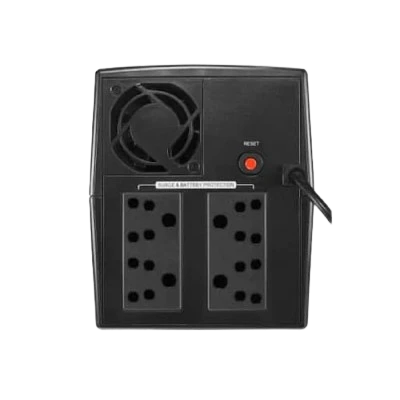

Outlet(s) - Total : 4
Outlet Type : IN/ZA x 4
Outlet(s) - Battery & Surge Protected : 4 |
| Battery |
Runtime at 60W ( min ) :90
Runtime at 90W ( min ) : 60
Typical Recharge Time ( Hours ) : 8
Start On Battery : Yes
User-replaceable : No
Battery Type : Sealed Lead-acid
Replacement Battery Pack (RBP)
: RBP0089
Replacement Battery Pack (RBP) Quantity ( pcs )
:2 |
| Surge Protection & Filtering |
Surge Suppression ( Joules ) : 125
EMI/RFI Filtration : Yes
Phone/Network Protection RJ11/RJ45 (Combo) : 1-in, 1-out |
| Management & Communications |
LED Indicators : Power On, Line Mode, Battery Mode, Battery Capacity, Low Battery HID Compliant USB Port(s) : 1 Audible Alarms : Battery Mode, Low Battery, Overload, UPS Fault Management Cable ( pcs ) : USB Cable x1 Power Management Software : PowerPanel Personal (Recommended) |
| Physical |
Enclosure Construction : Plastic Color : Black |
| Physical Size - UPS Module |
Dimensions (WxHxD) (in.) : 5.83 x 7.01 x 11.73 Dimensions (WxHxD) (mm.) : 148 x 178 x 298 Weight (lbs.) : 20.06 Weight (kg.) : 9.1 |
| Shipping Dimensions |
Dimensions (WxHxD) (in.) 10.67 x 7.95 x 15.63 Dimensions (WxHxD) (mm.) 271 x 202 x 397 Weight (lbs.) 21.38 Weight (kg.) 9.7 |
| Environmental |
Operating Temperature (°F) : 32 ~ 102
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ) : 0 ~ 90
Operating Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)
Storage Temperature (°F): -4 ~ 122
Storage Temperature (°C): -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 90
Storage Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr ): 102
Audible Noise at 1.5M from Surface of Unit ( dBA ): 50 |
| Certifications |
Certifications : BIS RoHS : Yes |
| Warranty |
Product Warranty Period (Year) : 2 Battery Warranty Period (Year) : 1 |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
