Description
DEEPCOOL CH170 DIGITAL MINI-ITX (WHITE)

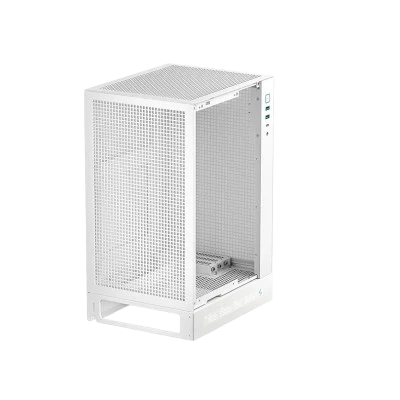

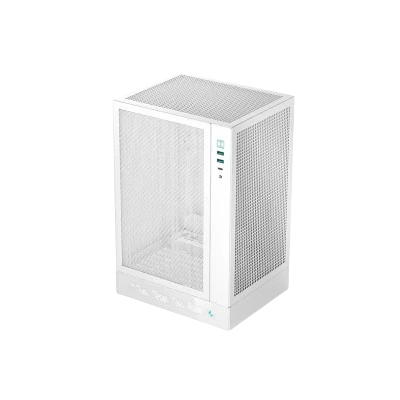

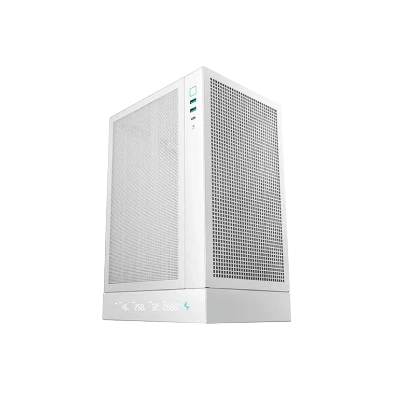

The CH170 DIGITAL WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
HIGH AIRFLOW PANELS

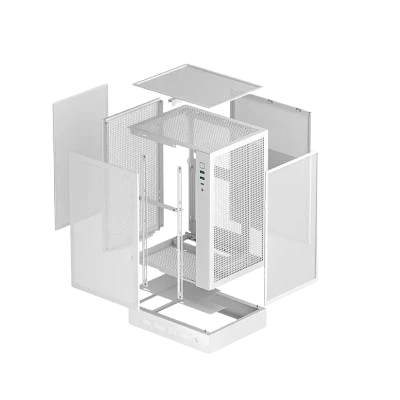

Mesh panels surround the CH170 DIGITAL WH from every side and create a high-airflow, small-form-factor case like no other.
NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm
| Model Number |
DEEPCOOL CH170 DIGITAL MINI-ITX (WHITE) |
| Product Dimensions |
250x200x380mm(L×W×H) |
| Net Weight |
3.4Kg |
| Materials |
ABS+SPCC |
| Motherboard Support |
Mini-ITX |
| Front I/O Ports |
USB3.0×2、Audio×1、Gen2 TypeC×1 |
| 3.5" Drive Bays |
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5" Drive Bays |
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| Expansion Slots |
3 Slots |
| Pre-Installed Fans |
None |
| Fan Support |
Top:1×120 mm
Front: NA
Rear: 2×120 mm
Bottom:1×120 mm
Side : 2×120 mm |
| Radiator Support |
Side : 240mm |
| CPU Cooler Height Limit |
172mm |
| GPU Size Limit |
Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots) |
| Power Supply Type |
ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| EAN |
6933412774211 |
| P/N |
R-CH170-WHNPI0D-G-1 |
