Description

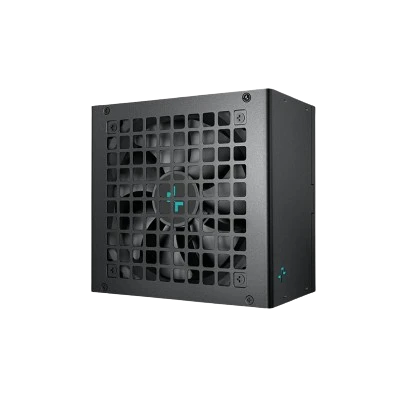

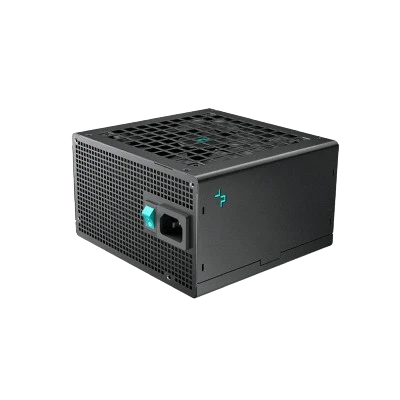

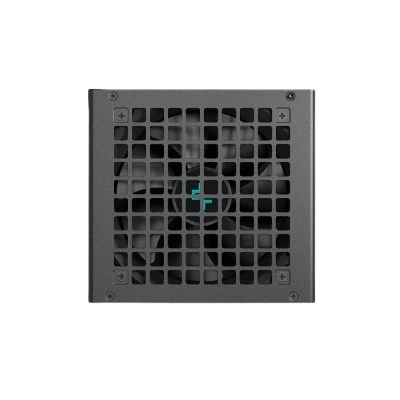

DEEPCOOL PL750D ATX 3.1 80 PLUS BRONZE SMPS (BLACK)
The PL750D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 450 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
| Model Number |
DEEPCOOL PL750D ATX 3.1 80 PLUS BRONZE SMPS (BLACK) |
| Type |
ATX12V V3.1 |
| Product Dimensions |
150×140×86mm (W x L x H) |
| Efficiency certification |
80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级 |
| Fan Size |
120mm |
| Fan Bearing |
HYB(Hydro Bearing) |
| Topology |
Active PFC+DC to DC |
| Capacitors |
Chinese Electrolytic Capacitors |
| Power Good Signal |
100-150ms |
| Hold Up Time |
≥16ms |
| Efficiency |
≥85% Under Typical Load(50% Loading) |
| Protection |
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature |
0 - 40℃ |
| Regulatory |
CE/FCC/CCC/RCM/EAC/BIS/
CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Erp Regulation |
ErP 2014 |
| Environment Protection |
WEEE/中国 RoHS/Triman/P65 |
| MTBF |
100,000 Hours |
| EAN P/N |
6933412721314 R-PL750D-FC0B-CN-V2
6933412721321 R-PL750D-FC0B-AU-V2
6933412721338 R-PL750D-FC0B-EU-V2
6933412721345 R-PL750D-FC0B-JP-V2
6933412721352 R-PL750D-FC0B-UK-V2
6933412721369 R-PL750D-FC0B-US-V2
6933412721376 R-PL750D-FC0B-IN-V2
6933412721383 R-PL750D-FC0B-WO-V2
6933412721390 R-PL750D-FC0B-BP-V2 |
