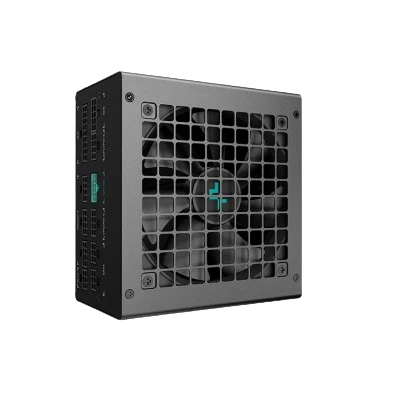

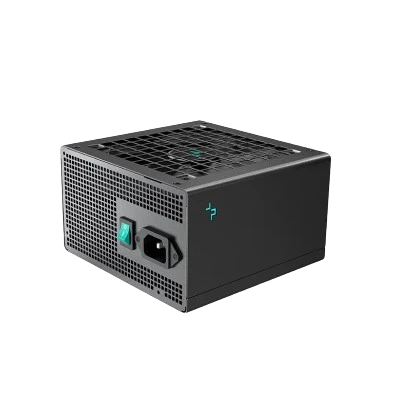

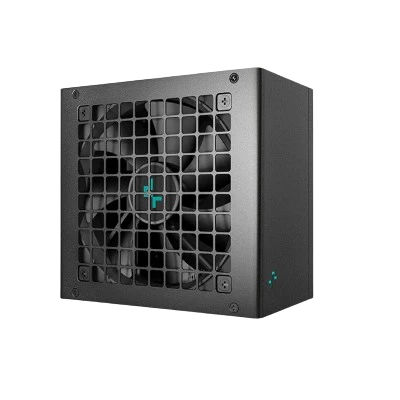

DEEPCOOL PN750M ATX 3.1 80 PLUS GOLD SMPS (BLACK)
The DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
| Model Number |
DEEPCOOL PN750M ATX 3.1 80 PLUS GOLD SMPS (BLACK) |
| Type |
ATX12V V3.1 |
| Product Dimensions |
150×140×86mm (W x L x H) |
| Efficiency certification |
80Plus Gold |
| Fan Size |
120mm |
| Fan Bearing |
FDB (Fluid Dynamic Bearing) |
| Topology |
Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors |
Japanese Bulk Capacitor |
| Power Good Signal |
100-150ms |
| Hold Up Time |
≥16ms(80% Load) |
| Efficiency |
≥90% Under Typical Load(50% Loading) |
| Protection |
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature |
0 - 40℃ |
| Regulatory |
CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation |
ErP 2014 |
| Environment Protection |
WEEE/中国 RoHS/Triman/P65 |
| MTBF |
100,000 Hours |
| EAN P/N |
6933412719373 R-PN750M-FC0B-CN
6933412719380 R-PN750M-FC0B-AU
6933412719397 R-PN750M-FC0B-EU
6933412719403 R-PN750M-FC0B-JP
6933412719410 R-PN750M-FC0B-UK
6933412719427 R-PN750M-FC0B-US
6933412719434 R-PN750M-FC0B-IN
6933412719441 R-PN750M-FC0B-WO
6933412719458 R-PN750M-FC0B-BP |
