Description

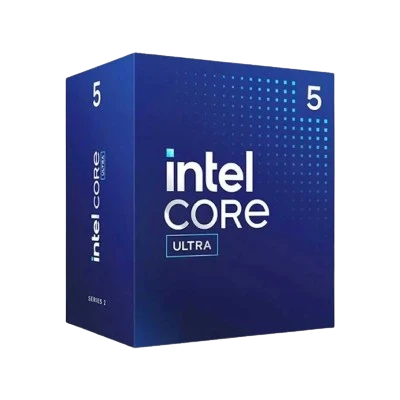

Intel® Core™ Ultra 5 Processor 225
The Intel Core Ultra 5 225 is a desktop processor with 10 cores, launched in January 2025, at an MSRP of $246. It is part of the Ultra 5 lineup, using the Arrow Lake architecture with Socket 1851. Core Ultra 5 225 has 20 MB of L3 cache and operates at 3.3 GHz by default, but can boost up to 4.9 GHz, depending on the workload. Intel is building the Core Ultra 5 225 on a 3 nm production process using 17,800 million transistors. The silicon die of the chip is not fabricated at Intel, but at the foundry of TSMC. The multiplier is locked on Core Ultra 5 225, which limits its overclocking capabilities.
With a TDP of 65 W, the Core Ultra 5 225 consumes typical power levels for a modern PC. Intel's processor supports DDR5 memory with a dual-channel interface. The highest officially supported memory speed is 6400 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the computer, Core Ultra 5 225 uses a PCI-Express Gen 5 connection. This processor features the Arc Xe-LPG Graphics 16EU integrated graphics solution.
Hardware virtualization is available on the Core Ultra 5 225, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
| Model Number |
Intel® Core™ Ultra 5 Processor 225 |
| Total Cores |
10 |
| # of Performance-cores |
6 |
| # of Efficient-cores |
4 |
| Total Threads |
10 |
| Max Turbo Frequency |
4.9Ghz |
| Performance-core Max Turbo Frequency |
4.9Ghz |
| Efficient-core Max Turbo Frequency |
4.4Ghz |
| Performance-core Base Frequency |
3.3Ghz |
| Efficient-core Base Frequency |
2.7Ghz |
| Cache |
20 MB Intel® Smart Cache |
| Total L2 Cache |
22 MB |
| Processor Base Power |
65W |
| Maximum Turbo Power |
121W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
| AI Software Frameworks Supported by CPU |
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography |
TSMC N3B |
| Marketing Status |
Launched |
| Launch Date |
Q1’25 |
| Embedded Options Available |
No |
| Use Conditions |
PC/Client/Tablet |
| Max Memory Size (dependent on memory type) |
256GB |
| Memory Types |
Up to DDR5 6400 MT/s |
| Max # of Memory Channels |
2 |
| CC Memory Supported |
No |
| GPU Name |
Intel® Graphics |
| Graphics Base Frequency |
300 MHz |
| Graphics Max Dynamic Frequency |
1.8 Ghz |
| GPU Peak TOPS (Int8) |
4 |
| Graphics Output |
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| X-Cores |
2 |
| Max Resolution (HDMI) |
4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) |
8K @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel) |
4K @ 60Hz |
| DirectX* Support |
12 |
| Open GL Support |
4.5 |
| OpenCL* Support |
3 |
| Intel® Quick Sync Video |
Yes |
| # of Displays Supported |
4 |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU |
Yes |
| NPU Name |
Intel® AI Boost |
| NPU Peak TOPS (Int8) |
13 |
| Sparsity Support |
Yes |
| Windows Studio Effects Support |
Yes |
| AI Software Frameworks Supported by NPU |
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Direct Media Interface (DMI) Revision |
4 |
| Max # of DMI Lanes |
8 |
| Intel® Thunderbolt™ 4 |
Yes |
| Scalability |
1S Only |
| PCI Express Revision |
5.0 and 4.0 |
| PCI Express Configurations |
Up to 1×16+2×4, 2×8+2×4,
1×8+4×4 |
| Max # of PCI Express Lanes |
24 |
| Sockets Supported |
FCLGA1851 |
| Thermal Solution Specification |
PCG 2022C |
| Max Operating Temperature |
105 °C |
| Intel® Gaussian & Neural Accelerator |
3.5 |
| Intel® Thread Director |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Technology |
2 |
| Intel® 64 |
Yes |
| Instruction Set |
64 Bit |
| Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Volume Management Device |
Yes |
| Intel® Standard Manageability (ISM) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Control-Flow Enforcement Technology |
Yes |
| Intel® AES New Instructions |
Yes |
| Intel® Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Boot Guard |
Yes |
| Mode-based Execute Control (MBEC) |
Yes |
| Intel® Virtualization Technology (VT-x) |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) |
Yes |
| Warranty |
3 Years |
