Description

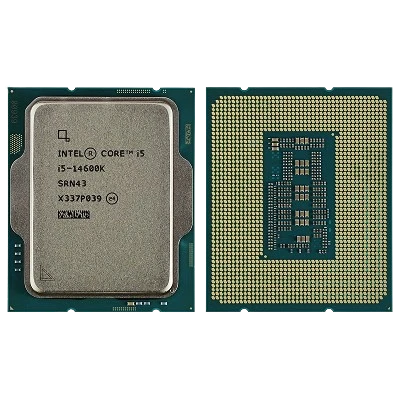

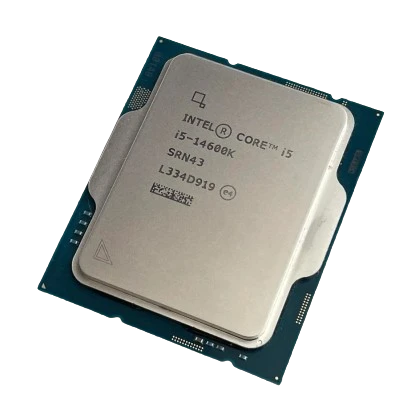

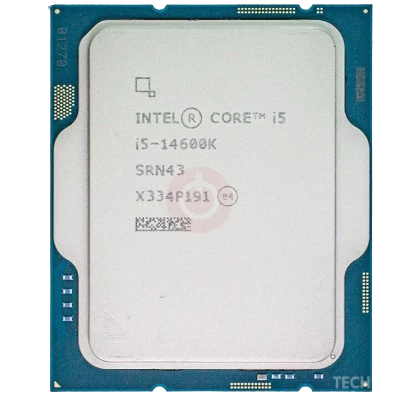

Intel Core 15 14600K TRAY
Product Collection
Intel® Core™ i5 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-14600K
Lithography
Intel 7
Recommended Customer Price
$319.00-$329.00
CPU Specifications
Total Cores
14
# of Performance-cores
6
# of Efficient-cores
8
Total Threads
20
Max Turbo Frequency
5.3 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4 GHz
Performance-core Base Frequency
3.5 GHz
Efficient-core Base Frequency
2.6 GHz
Cache
24 MB Intel® Smart Cache
Total L2 Cache
20 MB
Processor Base Power
125 W
Maximum Turbo Power
181 W
Supplemental Information
Marketing Status
Launched
Launch Date
Q4'23
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Datasheet
View now
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported ‡
Yes
GPU Specifications
GPU Name‡
Intel® UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.55 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)‡
4096 x 2160 @ 60Hz
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 °C
