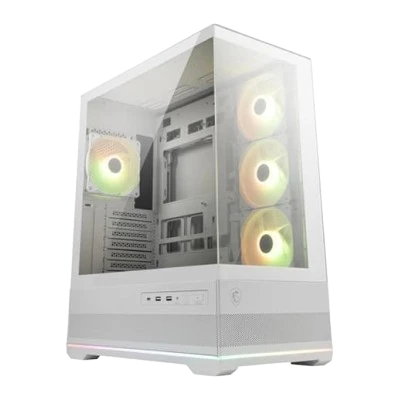

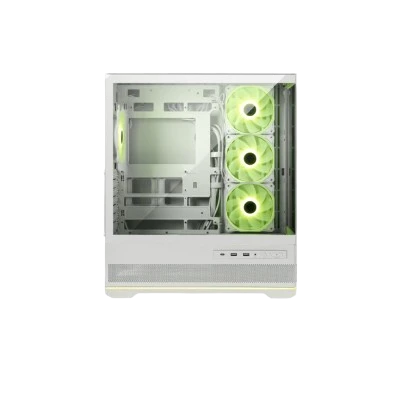

MAG PANO 110R PZ / WHITE
270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.
Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.
ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.
270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.
Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.
ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.
Model Number
MSI MAG PANO 110R PZ WHITE MID-TOWER ATX
Product Name
MAG PANO 110R PZ / WHITE
Case Form Factor
Mid-Tower
Motherboard Form Factor Support
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
Mic In/ Audio Out
LED Button
Power Button
I/O Ports
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button
Drive Mount Support
2 x 2.5“
2 x 3.5“
2 x 2.5"/3.5" combo
Expansion Slots
7
Maximum GPU Length
400 mm / 15.75 inches
Maximum CPU Cooler Height
160 mm / 6.30 inches
Power Supply Support
ATX
Maximum PSU Length
200 mm / 7.87 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse Blades Fan)
Rear: 1 x ARGB Fan
Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: NA
Rear: 120 mm
Side: NA
Bottom: NA
Dimensions (DxWxH)
420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
Connection
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
Mic In/ Audio Out
LED Button
Power Button
BEYOND THE POWER
The MAG FORGE 111R's ARGB lighting is fully supported by MSI Mystic Light.
Optimize Airflow.
ARGB Fan included.
330 mm Radiator Support.
160 mm CPU Cooler Support.
BEYOND THE POWER
The MAG FORGE 110R's ARGB lighting is fully supported by MSI Mystic Light.
Optimize Airflow.
ARGB Fan included.
330 mm Radiator Support.
160 mm CPU Cooler Support.
MINIMALIST DESIGN, MAXIMUM FEATURES
The CORSAIR Carbide Series 275R is a compact mid-tower ATX case that matches minimalist design and edge-to-edge window with a straightforward interior layout and versatile cooling options.
MINIMALIST DESIGN, MAXIMUM FEATURES
The CORSAIR Carbide Series 275R is a compact mid-tower ATX case that matches minimalist design and a beautiful tempered glass window with a straightforward interior layout and versatile cooling options.
Face of Visible Greatness
Can install up to 6x system fans, providing ventilation and stable performance to the whole system
Built-in ARGB fans with striking lighting and vivid lighting effects
Bundle with 1 to 6 ARGB LED control board that can allow you to have more attractive ways to decorate your gaming rig
Top vent lid provides additional system airflow and protection
The magnetic filter on top is designed to give users an easy un-installing and cleaning experience
