Description

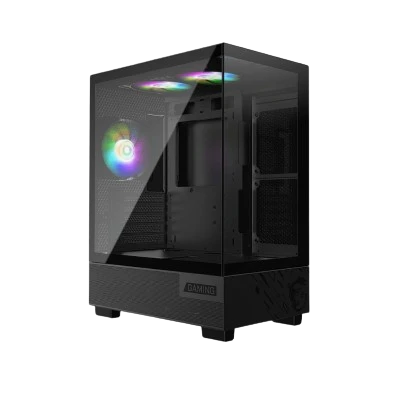

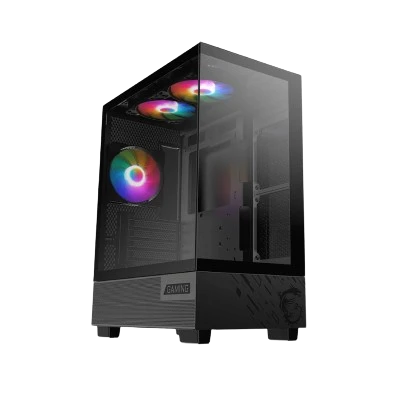

MSI PAG PANO M110A MID-TOWER ATX
- Auto RGB Fan： Packed with premium quality system fans to cool your system for maximized performance.
- System Fan Included： Packing with premium quality system fans to cool your system for the maximum performance.

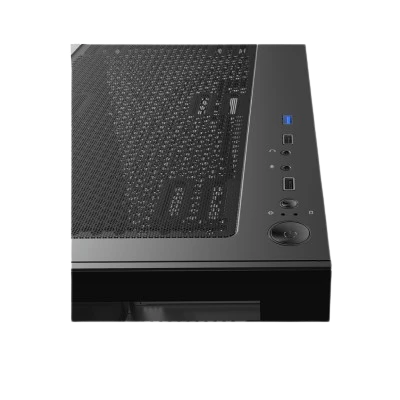

- Magnetic Filter： The magnetic dust filter on the top side is designed to give users the best experience in uninstalling and cleaning.
- Optimized Air Flow： This case supports up to 7 system fans installation and provides the whole system with ventilation for better stability.
| Model Number |
MSI PAG PANO M110A MID-TOWER ATX |
| Radiator Compatibility |
120 / 140 / 240 mm |
| Case Form Factor |
Mid Tower |
| Motherboard Form Factor Support |
Regular
Micro-ATX, Mini-ITX |
| Product Name |
PAG PANO M110A |
| Drive Mount Support |
1 x 2.5“
2 x 3.5“ |
| Dimension |
369(D) x 210(W) x 448(H) mm / 14.52 x 8.26 x 17.63 inches |
| Weight |
N/A kg / N/A lbs (TBD) |
| I/O Ports |
1 x USB 5Gbs (Type-A)
1 x USB (Type-A)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button |
| Case Expansion Slots |
5 |
| Pre-install Fan |
Top: 2 x 120 mm
Rear: 1 x 120 mm |
| Fan Support |
Rear: 1 x 120 mm
Top: 2 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 2 x 120 mm |
| Maximum PSU Length |
160 mm / 6.29 inches |
| Maximum GPU Length |
330 mm / 12.99 inches |
| Maximum CPU Cooler Length |
160 mm / 6.29 inches |
| Radiator Layout |
Rear: 120 mm
Top: 120 / 240 mm |
| Lightning |
Top: 2 x Auto RGB Fan
Rear: 1 x Auto RGB Fan |
| Power Supply |
ATX |
| Gross Weight |
N/A kg / N/A lbs (TBD) |
| Connection |
USB (Type-A)
2 x USB 5Gbps (Type-A)
Audio Out
Mic In
LED Switch
Power Button |
