Description

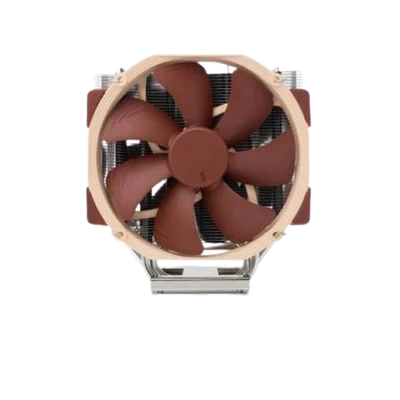

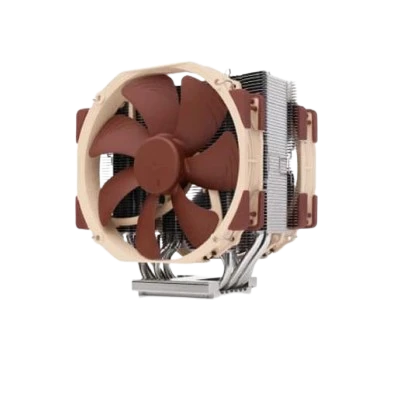

NOCTUA NH-U14S TR5-SP6 140mm CPU COOLER

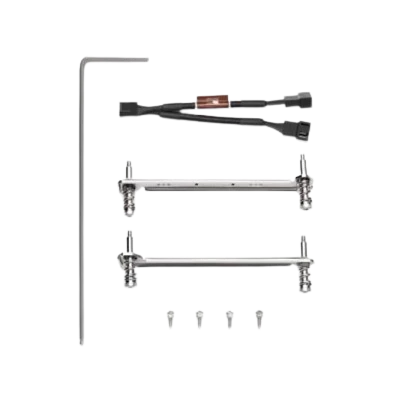

The NH-U14S TR5-SP6 is a 140mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise sTR5/SP6 sockets. Built on the proven basis of the renowned TR4-SP3 model with its large heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctua’s award-winning, PWM controlled NF-A15 140mm fans in order to achieve maximum performance and superb acoustics. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2™ mounting system for sTR5/SP6 that has been updated to meet the platform’s increased pressure specifications, the NH-U14S TR5-SP6 forms a complete premium quality package for quietly cooling sTR5-based Threadripper workstations and SP6-based Epyc servers.
| Model Number |
NOCTUA NH-U14S TR5-SP6 140mm CPU COOLER |
| Socket Compatibility |
AMD sTR5, SP6 |
| Height (without fan) |
165 mm |
| Width (without fan) |
150 mm |
| Depth (without fan) |
52 mm |
| Weight (without fan) |
797 g |
| Height (with fan) |
165 mm |
| Width (with fan) |
150 mm |
| Depth (with fan) |
111 mm |
| Weight (with fan) |
1136 g |
| Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR |
179 |
| Max. TDP |
see NSPR |
| Fan Compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| Model |
2x Noctua NF-A15 HS-PWM |
| Bearing |
SSO2 |
| Max. rotational speed (+/- 10%) |
1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) |
1200 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) |
300 RPM |
| Max Airflow |
140,2 m³/h |
| Max. airflow with L.N.A. |
115,5 m³/h |
| Max. acoustical noise |
24,6 dB(A) |
| Max. acoustical noise with L.N.A. |
19,2 dB(A) |
| Airflow |
140.2 m³/h |
| Airflow with L.N.A. |
115.5 m³/h |
| Acoustical noise |
24.6 dB(A) |
| Input power (typical) |
1.056 W |
| Input power (max.) |
1,56 W |
| Voltage Range |
12 V |
| MTTF |
> 150.000 h |
| Warranty |
6 Years |
