Description

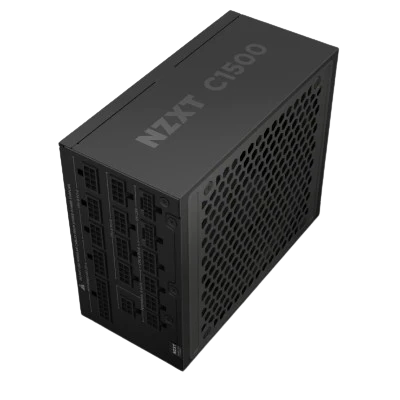

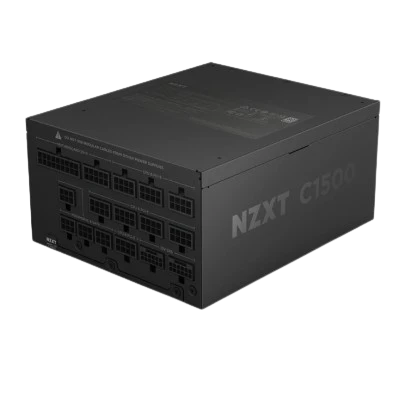

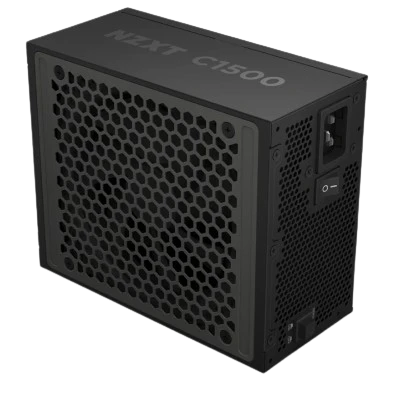

NZXT C1500 80 PLUS PLATINUM
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to NVIDIA® GeForce RTX™ RTX 50 Series graphics cards.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
| Model Number |
NZXT C1500 80 PLUS PLATINUM |
| Total Connectors |

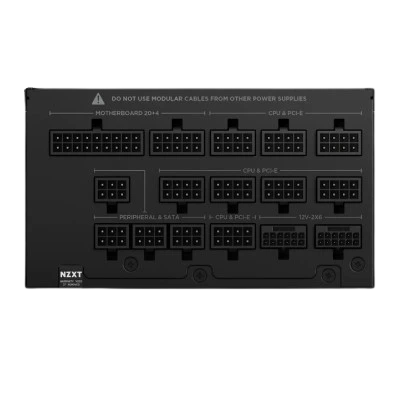

1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 6x 6+2-Pin PCIe 2x 16-Pin PCIe (12VHPWR) 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design |
Modular, Sleeved |
| PCIe Connector Distances |
25.6" / 650 mm |
| SATA Connector Distances |
25.6" / 650 mm |
| Peripheral Connector Distances |
25.6" / 650 mm |
| ATX Connector Distance |
23.6" / 600 mm |
| EPS Connector Distances |
27.6" / 700 mm |
| Total Wattage |
1500 W |
| Number of +12 V Rails |
1 |
| Combined Power for +12 V |
1500 W |
| Max Load for +12 V |
125 A |
| Combined Power for +3.3/+5 V |
120 W |
| Max Load for +3.3 V |
22 A |
| Max Load for +5 V |
22 A |
| Max Power for +5 Vsb |
15 W |
| Max Load for +5 Vsb |
3 A |
| Peak Power |
1500 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating |
80 PLUS Platinum |
| Active Power Factor Correction |
No |
| Efficiency |
92% at 10% Load 94% at 20% Load 93% at 50% Load 90% at 100% Load |
| Fan Size |
140 mm |
| Fan Speed |
2500 rpm |
| Bearing Type |
Magnetic Levitation |
| Noise Level |
41 dBA |
| Operating Temperature |
32 to 122°F / 0 to 50°C |
| Form Factor |
ATX |
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications |
FCC, CB IEC 62368-1, UKCA, BSMI, RCM, TUV, KC |
| Mean Time Between Failures (MTBF) |
100,000 Hours |
| Dimensions |
7.1 x 5.9 x 3.4" / 180 x 150 x 86 mm |
| Weight |
2 kg |
| Product Type |
Normal |
| color |
Black |
| Brands |
Nzxt |
| Modular |
Fully Modular |
| PSU Certification |
Platinum |
| Wattage |
1500W |
| Warranty |
10 Years |
