Description

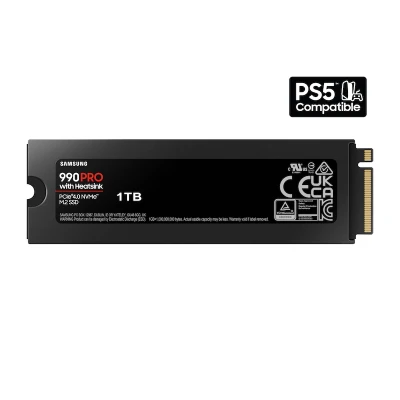

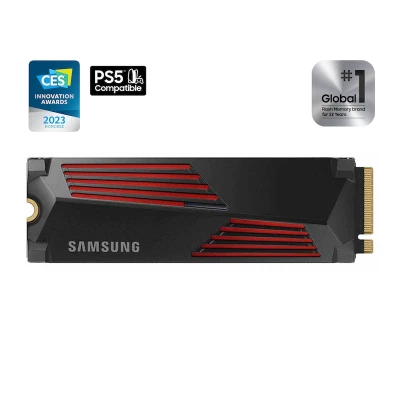

SAMSUNG 990 PRO WITH HEATSINK NVMe M.2 SSD (1TB)
Our Ultimate SSD
Reach max performance with PCIe®4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious performance that always keeps you at the top of your game.
Maximized PCIe®4.0 speed
Huge speed boost
Get random read/write speeds that are 40%/55% faster than 980 PRO. Experience up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near the max performance of PCIe®4.0. Fly high in gaming, video editing, 3D modeling, data analysis and more.
Breakthrough power efficiency
More power-efficient performance
Use less power and get more performance. Enjoy up to 50% improved performance per watt over 980 PRO, plus optimal power efficiency with max PCIe®4.0 performance.
Smart thermal control
Samsung's own nickel-coated high-end controller delivers effective thermal control and prevents sudden performance drops from overheating. Play confidently with stable thermal power and minimal fan noise even during heavy-graphic gaming. With its slim size, 990 PRO with Heatsink is a perfect fit for PlayStation®5, desktops and laptops that meet the PCI-SIG®D8 standard.
| Model Number |
SAMSUNG 990 PRO WITH HEATSINK NVMe M.2 SSD (1TB) |
| Application |
Client PCs, Game Consoles |
| Capacity |
1TB |
| Interface |
PCIe Gen 4.0 x4, NVMe 2.0 |
| Form Factor |
M.2 (2280) |
| Storage Memory |
Samsung V-NAND 3-bit MLC |
| Cache Memory |
Samsung 1GB Low Power DDR4 SDRAM |
| Dimension (WxHxD) |
80 x 24.3 x 8.2 mm (with heatsink) |
| Weight |
Max 28.0g Weight |
| Controller |
Samsung in-house Controller |
| Sequential Read |
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
| Sequential write |
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB ,QD32) |
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB ,QD32) |
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Read (4KB ,QD1) |
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB ,QD1) |
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
| Product Type |
Internal SSD |
| Usage Application |
Client PCs, Game Consoles |
| Shock |
1,500 G & 0.5 ms (Half sine) |
| Product Form Factor |
M.2 2280 |
| Management SW |
Magician Software for SSD management |
| Product Warranty |
5-Year Limited Warranty or 600 TBW Limited Warranty |
| TRIM Support |
Supported |
| S.M.A.R.T Support |
Supported |
| GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
| Encryption Support |
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support |
Not supported |
| Device Sleep Mode Support |
Yes |
| Operating Temperature |
0 - 70 ℃ Operating Temperature |
| Average Power Consumption (system level) |
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) |
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage |
3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF) |
| Installation Kit |
Not Available |
