Description

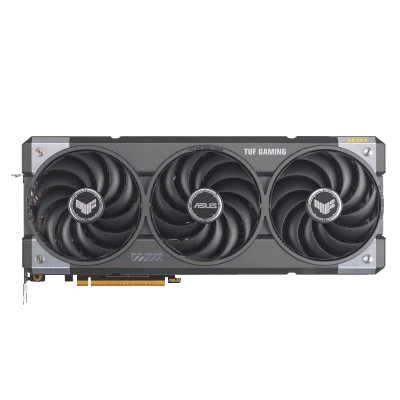

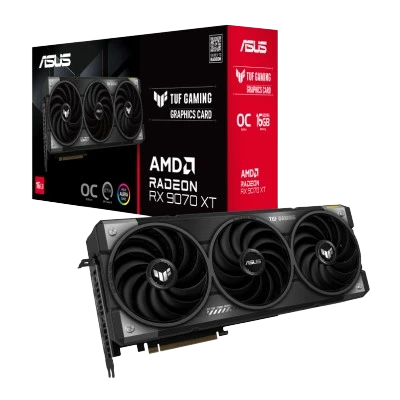

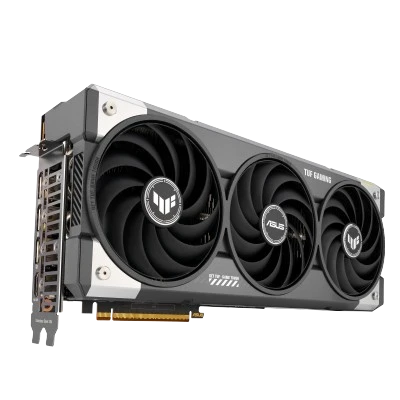

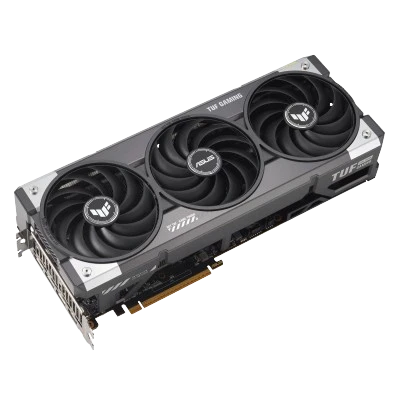

ASUS TUF GAMING RADEON RX 9070 XT OC Edition 16GB GDDR6
Game TUF. Built to Last.
ASUS TUF Gaming Radeon™ RX 9070 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.
Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.
The Perfect PSU for the TUF Gaming Radeon™ RX 9000 Series
The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.
| Model Number |
ASUS TUF GAMING RADEON RX 9070 XT OC Edition 16GB GDDR6 |
| Model |
TUF-RX9070XT-O16G-GAMING |
| Graphic Engine |
AMD Radeon™ RX 9070 XT |
| Bus Standard |
PCI Express 5.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
16GB GDDR6 |
| Engine Clock |
OC mode(GPU Tweak III): up to 3080 MHz (Boost Clock)/up to 2540 MHz (Game Clock)
Default mode: up to 3060 MHz (Boost Clock)/up to 2520 MHz (Game Clock) |
| Stream Processors |
4096 |
| Memory Speed |
20 Gbps |
| Memory Interface |
256-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Fridge Magnet
1 x Thank you card
1 x Speedsetup Manual |
| Software |
ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| Dimensions |
330 x 140 x 62.5 mm
13 x 5.5 x 2.5 inch |
| Recommended PSU |
850W |
| Power Connectors |
3 x 8-pin |
| Slot |
3.125 Slot |
| AURA SYNC |
RGB |
