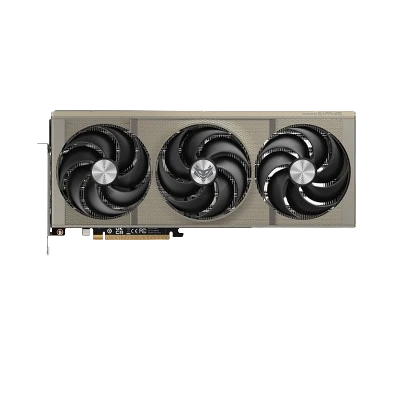

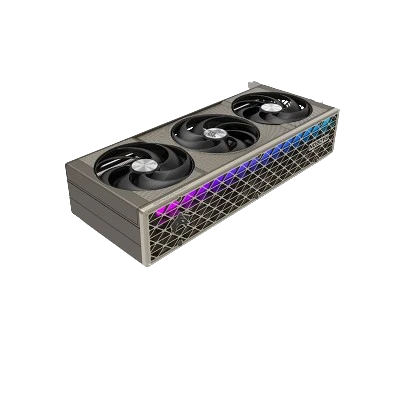

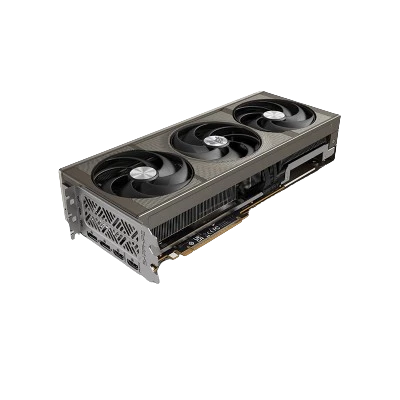

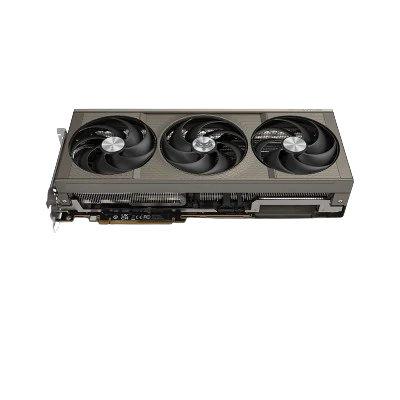

SAPPHIRE NITRO+ AMD RADEON RX 9070 XT OC 16GB (BLACK)
Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.
Quick Connect MagniPlate
The magnetic backplate on the graphics card combines sleek design with practical functionality. Engineered for effortless installation, its magnetic attachment ensures a secure fit while enhancing heat dissipation and overall durability. This premium feature not only protects your graphics card but also elevates your build with a clean, modern aesthetic—perfect for gamers and creators who demand performance and style.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.
| Model Number |
SAPPHIRE NITRO+ AMD RADEON RX 9070 XT OC 16GB (BLACK) |
| GPU |
AMD Radeon™ RX 9070 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock |
Boost Clock: Up to 3060 MHz Game Clock: Up to 2520MHzBoost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors |
4096 |
| Compute Units |
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache |
64MB |
| Ray Accelerators |
64 |
| AI Accelerator |
128 |
| Memory Size / Bus |
16GB/256 bit GDDR6 |
| Memory Clock |
20 Gbps Effective |
| Display |
Maximum 4 Displays |
| Resolution |
HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface |
PCI-Express 5.0 x16 |
| Output |
2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support |
UEFI |
| Game Index |
4K |
| Sapphire Features |
Quick Connect MagniPlate STEALTH Hidden Power Cable 12V-2×6(H++) External Power Connector (3×8-pin power adapter is also included if your PC’s Power Supply Unit does not have 12V-2×6) Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Cold Rolled Steel Frame Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB Light Bar Fan Quick Connect Two-Ball Bearing Fans Premium 16-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! Fan Check TriXX Boost External RGB LED MB Synchronization |
| Accessories Bundled |
L-Shape Support Bracket 3pin 5V ARGB Cable Magnetic Backplate 12V-2×6(H++) to PCI Express 3×8-pin power adapter |
| AMD Features |
AMD RDNA™ 4 Architecture 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type |
Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor |
3.2 slot, ATX Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm |
| Power Consumption |
330W Typical Board Power |
| OS |
Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement |
Minimum 750 Watt Power Supply 12V-2×6(H++) Power Connector (3×8-pin power adapter is also included if your PC’s Power Supply Unit does not have 12V-2×6) PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
| Warranty |
3 Years |
